| Pappasgarage | | Set |  |  | | Reg. Date | : | 05/10/2009 | | Posts | : | 371 | | Location | : | Espoo, snowbird in California, Finland |
|

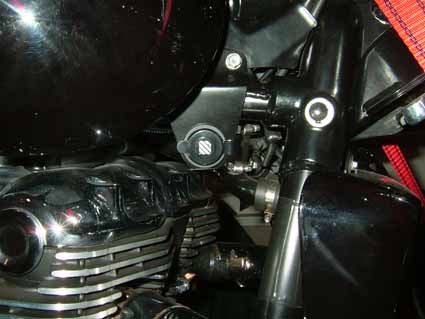

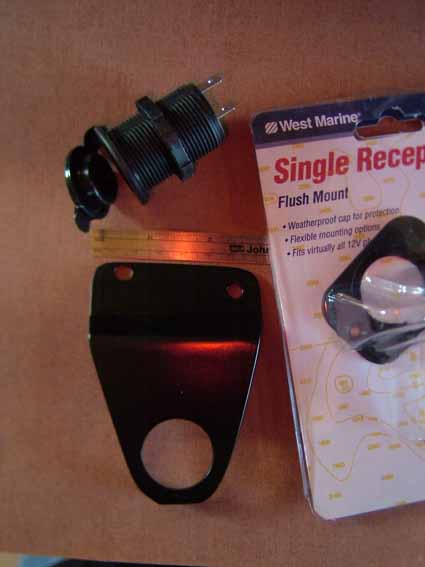

| | Posted : 15 Mar 2010 - 12:32 Post title : The power adapter bracket | | | Hey guy s, here is a power adapter bracket made for me by Gary alias Weatherman.
Well reachable and hidden.
Comments please.
Gary has also made some other accessories for the Bird that will be shown later.
My part was just to helping Gary with the pictures.
| Speedmaster 2004 in Espoo Fi, Rocket3 Touring 2014 in Oceanside Ca. IBA Finland SS1000
and T-Bird 09 gone
|
|
|
|
| Birdy68 | | Thor | |  | | Reg. Date | : | 16/07/2009 | | Posts | : | 3,352 | | Location | : | Bad Zurzach, Aargau, Switzerland |
|
| | Posted : 15 Mar 2010 - 13:56 Post title : Re: The power adapter bracket (Re: Pappasgarage) | | |
Pappasgarage wrote:
.... My part was just to helping Gary with the pictures. |
|
On a serious note: That looks very nice!
But what if you get spray from wet roads?
| Birdy68
-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-
Leave the pork pies for now - get the sausage rolls while they're hot!
 -x-  -x-
more info at Fuelly.com
|
|
|
|
| Pappasgarage | | Set | | | | Reg. Date | : | 05/10/2009 | | Posts | : | 371 | | Location | : | Espoo, snowbird in California, Finland |
|
| | Posted : 15 Mar 2010 - 14:30 Post title : Re: The power adapter bracket (Re: Birdy68) | | | The adapter is for marine use and one has to see to that the wire connectors are covered properly
| Speedmaster 2004 in Espoo Fi, Rocket3 Touring 2014 in Oceanside Ca. IBA Finland SS1000
and T-Bird 09 gone
|
|
|
|
| Druid | | Jupiter | |  | | Reg. Date | : | 14/10/2009 | | Posts | : | 1,359 | | Location | : | United Kingdom |
|
| | Posted : 17 Mar 2010 - 14:16 Post title : Re: The power adapter bracket (Re: Pappasgarage) | | | Im just about to do one myself . Did you wire straight to the battery or into the loom somewhere , ie headlight.
| Socialism is the philosophy of failure, the creed of ignorance, and the gospel of envy, its inherent virtue is the equal sharing of misery - W.Churchill
|
|
|
|
| Pappasgarage | | Set | | | | Reg. Date | : | 05/10/2009 | | Posts | : | 371 | | Location | : | Espoo, snowbird in California, Finland |
|
| | Posted : 17 Mar 2010 - 17:29 Post title : Re: The power adapter bracket (Re: Druid) | | | The bracket is still in Garys garage in Vista Ca. I m visiting Finland this month but will leave for
California by midd April and do the wiring. I ll probably take it to the fuse box where I spotted
an empty fuse. I ll get back to this issue later. Perhaps Gary has by then more accessories to
bolt on.
| Speedmaster 2004 in Espoo Fi, Rocket3 Touring 2014 in Oceanside Ca. IBA Finland SS1000
and T-Bird 09 gone
|
|
|
|
| fab | | Thor | |  | | Reg. Date | : | 12/10/2009 | | Posts | : | 2,515 | | Location | : | wyong, nsw, Australia |
|
| | Posted : 18 Mar 2010 - 03:38 Post title : Re: The power adapter bracket (Re: Pappasgarage) | | | I have installed the genuine power socket and adapter.
There is already the correct cable with plug, on top of the fuse box,it is tapped in blue tape to another wire
and it mounts beside the key ignition.
|
Remember, soft cocks hang around all life long, hard ones come and go
ahh f**k im deep
|
|
|
|
| Pappasgarage | | Set | | | | Reg. Date | : | 05/10/2009 | | Posts | : | 371 | | Location | : | Espoo, snowbird in California, Finland |
|
| | Posted : 18 Mar 2010 - 06:02 Post title : Re: The power adapter bracket (Re: fab) | | | Thanks fab, I ll keep in mind when I start the cabling .
| Speedmaster 2004 in Espoo Fi, Rocket3 Touring 2014 in Oceanside Ca. IBA Finland SS1000
and T-Bird 09 gone
|
|
|
|
| Druid | | Jupiter | | | | Reg. Date | : | 14/10/2009 | | Posts | : | 1,359 | | Location | : | United Kingdom |
|
| | Posted : 18 Mar 2010 - 14:00 Post title : Re: The power adapter bracket (Re: Pappasgarage) | | | I was told the genuine socket was smaller than a cigarette socket.
Is that wrong?
| Socialism is the philosophy of failure, the creed of ignorance, and the gospel of envy, its inherent virtue is the equal sharing of misery - W.Churchill
|
|
|
|
| Jimbo | | Jupiter | |  | | Reg. Date | : | 25/01/2010 | | Posts | : | 1,032 | | Location | : | Queanbeyan, N.S.W., Australia |
|
| | Posted : 18 Mar 2010 - 21:28 Post title : Re: The power adapter bracket (Re: Druid) | | | The genuine socket needs a Powerlet connector.
It's about a third the size of a cigarette plug,
Cheers
Jimbo
| Cheers
Jimbo (Bishop)
Keep the black side trackside and the shiny side up!
Veterans MC - Federal Chapter
|
|
|
|
| Druid | | Jupiter | | | | Reg. Date | : | 14/10/2009 | | Posts | : | 1,359 | | Location | : | United Kingdom |
|
| | Posted : 20 Mar 2010 - 08:36 Post title : Re: The power adapter bracket (Re: Jimbo) | | | cheers Jimbo.
Where is that plug ? The one by the fuse box. Ok so wheres the fuse box lol , under the seat or one of the side panels ? Before I start taking the seat off ect.
Its ok ive found it . There is a big plug covered in plastic but i cant see a conector with blue tape.
| Socialism is the philosophy of failure, the creed of ignorance, and the gospel of envy, its inherent virtue is the equal sharing of misery - W.Churchill
| | Post edited by Druid on 20 Mar 2010 - 08:59 |
|
|
|
| British_Steel | | Set | |  | | Reg. Date | : | 17/01/2010 | | Posts | : | 164 | | Location | : | Milton Keynes, Buckinghamshire, United Kingdom |
|
| | Posted : 20 Mar 2010 - 18:05 Post title : Re: The power adapter bracket (Re: Druid) | | | I also went for the OEM power socket. Bought one of these Link so i could keep the Optimate doing it's job
| "My fault, my failure, is not in the passions I have, but in my lack of control of them." Jack Kerouac
Black T'bird 1700, LH rider and passenger seats, front and rear dresser bars, light bar, roadster screen, passenger footboards, QR sissy bar and rack, LH backrest, bags, longs TORs, high flow air filter.... for now
|
|
|
|
| Pappasgarage | | Set | | | | Reg. Date | : | 05/10/2009 | | Posts | : | 371 | | Location | : | Espoo, snowbird in California, Finland |
|

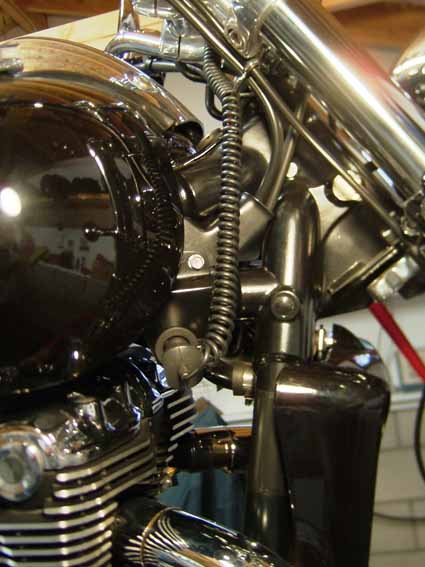

| | Posted : 20 Apr 2010 - 06:58 Post title : Re: The power adapter bracket (Re: Pappasgarage) | | | Cabeling done, found the free socket behind the ignition key. Electricity flows.
| Speedmaster 2004 in Espoo Fi, Rocket3 Touring 2014 in Oceanside Ca. IBA Finland SS1000
and T-Bird 09 gone
|
|
|
|
| ezrider3 | | Chaac | |  | | Reg. Date | : | 21/01/2010 | | Posts | : | 505 | | Location | : | Maryland, United States |
|
| | Posted : 26 May 2010 - 23:47 Post title : Re: The power adapter bracket (Re: fab) | | | Where can I get a adapter for the factory power outlet?
Thanks
|
|
|
|
| ezrider3 | | Chaac | | | | Reg. Date | : | 21/01/2010 | | Posts | : | 505 | | Location | : | Maryland, United States |
|
| | Posted : 26 May 2010 - 23:48 Post title : Re: The power adapter bracket (Re: Jimbo) | | | Where can I get a Powerlet?
Thanks
Jimbo wrote:
The genuine socket needs a Powerlet connector.
It's about a third the size of a cigarette plug,
Cheers
Jimbo |
|
|
|
|
|
| Jimbo | | Jupiter | | | | Reg. Date | : | 25/01/2010 | | Posts | : | 1,032 | | Location | : | Queanbeyan, N.S.W., Australia |
|
| | Posted : 27 May 2010 - 01:43 Post title : Re: The power adapter bracket (Re: ezrider3) | | | Hey Ezrider3
Here's where I get mine - you might find them in the US or UK:
Link
Link
Cheers
| Cheers
Jimbo (Bishop)
Keep the black side trackside and the shiny side up!
Veterans MC - Federal Chapter
|
|
|
|
| Gonzo | | Chaac | |  | | Reg. Date | : | 01/05/2010 | | Posts | : | 643 | | Location | : | Sydney, NSW, Australia |
|
| | Posted : 27 May 2010 - 02:47 Post title : Re: The power adapter bracket (Re: Pappasgarage) | | | That looks really good and really makes sense to put it there as well, if you have any accessories that need power hanging off the handlebars. Great thinking! :)
What are you screwing the bracket into? The cable cover thing?
Gonzo
| --
Red XIII
Mods: locking gas cap; ISO-Wings for passenger; engine guards; dresser bars; Arlen Ness LED licence plate holder, rego tube and coloured number plate; long TORs; Pilot highway pegs w/ Magnum clamps; windshield; lower deflectors (customised); ISO grips; HD switch-block; Hardstreet Slimbags (colour matched); Corbin dual tour seat; Luggage rack & bag.
Todo: Various chroming of hand-made parts, Convex mirrors
Wishlist: Mini-ape handlebars, Hard clearcoat over tank
|
|
|
|
| Pappasgarage | | Set | | | | Reg. Date | : | 05/10/2009 | | Posts | : | 371 | | Location | : | Espoo, snowbird in California, Finland |
|
| | Posted : 27 May 2010 - 12:28 Post title : Re: The power adapter bracket (Re: Gonzo) | | | The cable cover provides the 2 screws I ve charged my phone even in my pocket without disturbance.
The only thing that I miss on the bike is a beer tap
| Speedmaster 2004 in Espoo Fi, Rocket3 Touring 2014 in Oceanside Ca. IBA Finland SS1000
and T-Bird 09 gone
|
|
|
|
| EnGage | | Thor | |  | | Reg. Date | : | 14/07/2009 | | Posts | : | 3,155 | | Location | : | Grand Rapids, MI, United States |
|
| | Posted : 27 May 2010 - 12:33 Post title : Re: The power adapter bracket (Re: Pappasgarage) | | | for those of you that need power via mini-usb connection (phone, GPS, etc.) this is a very nice solution: Link
it wires directly to the battery, provides 5 volts (standard USB voltage) and when routed under the tank is not very visible.
|
|
|
|
| Birdy68 | | Thor | | | | Reg. Date | : | 16/07/2009 | | Posts | : | 3,352 | | Location | : | Bad Zurzach, Aargau, Switzerland |
|
| | Posted : 10 Oct 2010 - 17:52 Post title : Re: The power adapter bracket (Re: Jimbo) | | | OK - so now my phone can charge while I ponder around the Swiss roads - PLUS - I'll be using it as my Optimate (battery tender / charger) input location!
I did look at the OEM socket, but as it's been commented - it's the smaller version of your standard car socket.
So I bought:
- a standard 12V cigerett socket
- black outdoor silicone-filler
- black cables ties
General testing of location - tucked up and under the tank on top of injector air input tubing...
I wired the socket directly to the battery, with a 5A fuse inline.
I wrapped some plastic tubing and black electrical tape around the threading/rear of socket...
Then using some outdoor/all weather/saltwater resistan/-30 to 150 C silicone I...
... 'gundged' up the back of the socket
Then using two black cable ties I fixed the socket on top of the injector/air feed tubing.
Everything works wonderfully!
Total cost:
- SFr. 19.00 Socket
- SFr. 6.90 Silicone (loads left over - can/will be used for future projects)
- SFr. 2.50 Cable ties
---------------------------
SFr. 28.40
Triumph OEM Power Socket
SFr. 45.00 - plus it's the wrong size for me!
Hope this helps someone
| Birdy68
-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-
Leave the pork pies for now - get the sausage rolls while they're hot!
-x- -x-
more info at Fuelly.com
|
|
|
|
| molinoman | | Set | |  | | Reg. Date | : | 26/09/2010 | | Posts | : | 189 | | Location | : | Molino, Florida, United States |
|
| | Posted : 11 Oct 2010 - 09:42 Post title : Re: The power adapter bracket (Re: Jimbo) | | | They are commonly known as "BMW type power plugs", I bought mine at my local Triumph dealer in Pensacola (D&D Cycles), hopefully a Triumph dealer would have these hanging on the wall in the accessory section.
Dennis
65 dtg Dubai
66 dtg London
167 dtg Dubai
168 dtg Home (Stallion and Triumph ordering/buying time)
| Last bike owned:
2007 Triumph Rocket III (sold in April, 2010)
Have finally ridden my 2010 Phantom Red Haze Thunderbird, picked it up in Feb 09, 2011, enjoyed the ride...now I am back in the sand box.
|
|
|
|
| Birdy68 | | Thor | | | | Reg. Date | : | 16/07/2009 | | Posts | : | 3,352 | | Location | : | Bad Zurzach, Aargau, Switzerland |
|
| | Posted : 02 Jul 2011 - 10:35 Post title : Re: The power adapter bracket (Re: molinoman) | | | Just Bumping this thread so that Thatch can see how I installed the 12 V socket.
| Birdy68
