| | Posted : 06 Mar 2011 - 15:11 Post title : Highway Hawk Sissy Rack info For Gonzo | | | Hi Mark,
I've had to post these photos as I couldn't figure out how to attach them to a PM.
Right, I've put the sissy bar back on and I've measured the upper and lower bolts which is where the rack will attach, these are the inside measurements.

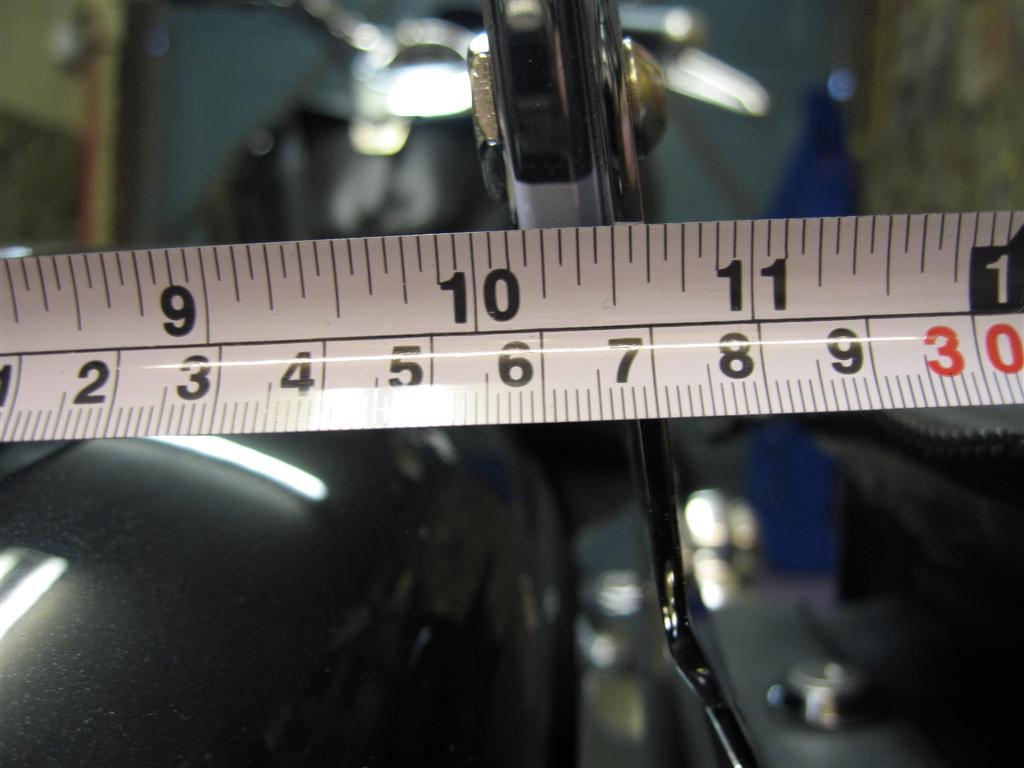

The upper measures just under 10 and quarter inches

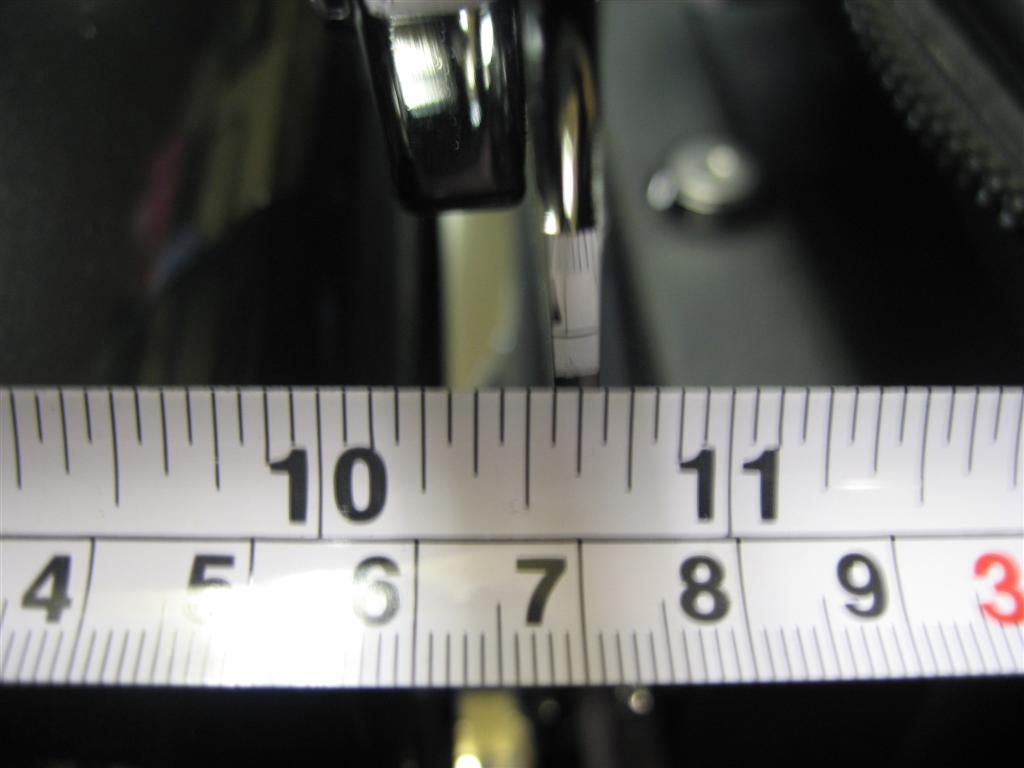

And the lower measures just over 10 and half inches
I've attached the photos so hopefully this makes sense.

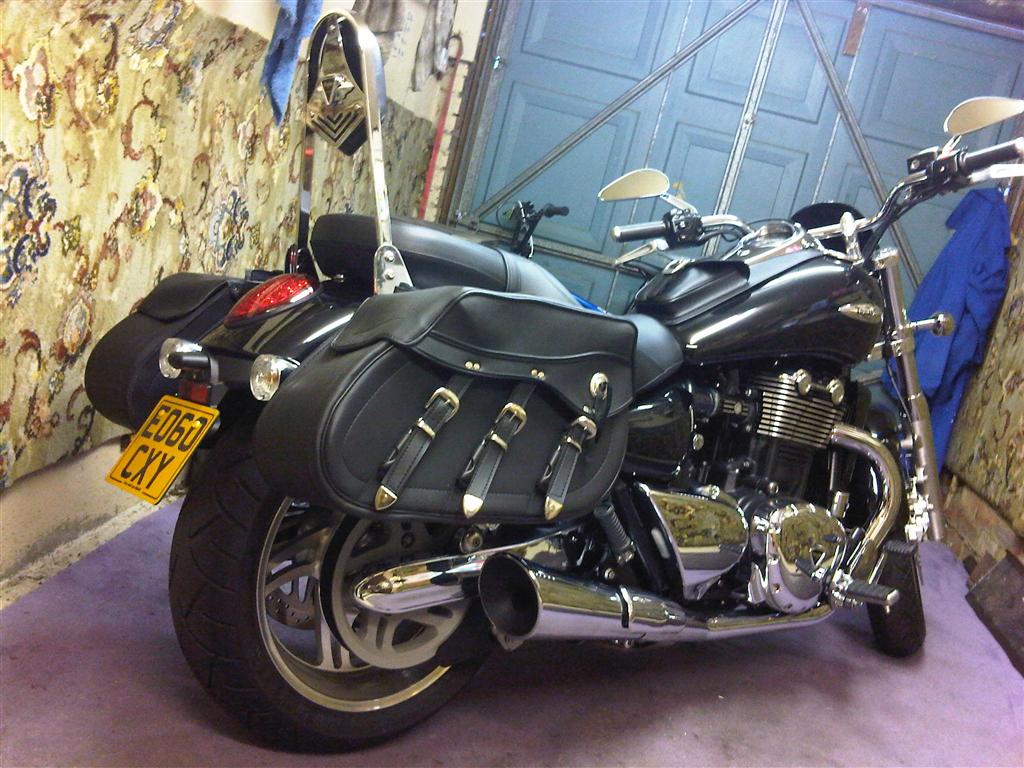

And I've included this one as it shows the newly installed saddlebags with the easy brackets!!
| Live and Let Ride!!!
| | Post edited by haydn71 on 06 Mar 2011 - 15:14 |
|
| | | zolti | | Thor | |  | | Reg. Date | : | 23/03/2010 | | Posts | : | 3,127 | | Location | : | newcastle , United Kingdom |
|
| | Posted : 06 Mar 2011 - 16:47 Post title : Re: Highway Hawk Sissy Rack info For Gonzo (Re: haydn71) | | | hi haydn
did you get your easy brackets in the uk?
|
|
| | | haydn71 | | Set | | | | Reg. Date | : | 01/01/2011 | | Posts | : | 39 | | Location | : | Essex, United Kingdom |
|
| | Posted : 06 Mar 2011 - 19:17 Post title : Re: Highway Hawk Sissy Rack info For Gonzo (Re: zolti) | | | No I bought them off of flee-bay from America. They cost £125 plus £26 import Tax!!!
It's great to know I'm doing my bit for the economy
The dealer in America was great full of infomation and very helpfull
Link
| Live and Let Ride!!!
|
|
| | | Gonzo | | Chaac | |  | | Reg. Date | : | 01/05/2010 | | Posts | : | 643 | | Location | : | Sydney, NSW, Australia |
|
| | Posted : 07 Mar 2011 - 01:22 Post title : Re: Highway Hawk Sissy Rack info For Gonzo (Re: haydn71) | | | Excellent, thanks Haydon. Great photos as they show me EXACTLY the inside and ousdide dims. Perfect. :)
And thanks for showing that it works with the Easy Brackets, because that is what I have one, as well. So I assume you got the mounting lugs that are suitable for with the Triumph Backrest? I purchased mine to be without, so hope I can make some adjustments to fit it all OK.
Can I bother you for one more bit of detail? :)
What is the spacing between the holes that support the rack?
Cheers!
Gonzo
| --
Red XIII
Mods: locking gas cap; ISO-Wings for passenger; engine guards; dresser bars; Arlen Ness LED licence plate holder, rego tube and coloured number plate; long TORs; Pilot highway pegs w/ Magnum clamps; windshield; lower deflectors (customised); ISO grips; HD switch-block; Hardstreet Slimbags (colour matched); Corbin dual tour seat; Luggage rack & bag.
Todo: Various chroming of hand-made parts, Convex mirrors
Wishlist: Mini-ape handlebars, Hard clearcoat over tank
|
|
| | | haydn71 | | Set | | | | Reg. Date | : | 01/01/2011 | | Posts | : | 39 | | Location | : | Essex, United Kingdom |
|
| | Posted : 07 Mar 2011 - 18:14 Post title : Re: Highway Hawk Sissy Rack info For Gonzo (Re: Gonzo) | | |
Gonzo wrote:
Excellent, thanks Haydon. Great photos as they show me EXACTLY the inside and ousdide dims. Perfect. :)
And thanks for showing that it works with the Easy Brackets, because that is what I have one, as well. So I assume you got the mounting lugs that are suitable for with the Triumph Backrest? I purchased mine to be without, so hope I can make some adjustments to fit it all OK.
Can I bother you for one more bit of detail? :)
What is the spacing between the holes that support the rack?
Cheers!
Gonzo |
|
Hi Mark,
I've just measured the holes and there is 1" between them.
I purchased the easy brackets to fit on the rear mounting holes of the fender, so the bracket would be located in the middle of the bags. I had to get some spacers made and purchase some longer (70mm) M8 hex bolts which I re-threaded to make them fit with the sissy bar. I can give you more details tomorrow as I'm about to go back to work if you would like.
Cheers
| Live and Let Ride!!!
|
|
| | | Gonzo | | Chaac | | | | Reg. Date | : | 01/05/2010 | | Posts | : | 643 | | Location | : | Sydney, NSW, Australia |
|
| | Posted : 08 Mar 2011 - 00:59 Post title : Re: Highway Hawk Sissy Rack info For Gonzo (Re: haydn71) | | | No, that's all the details I need. I reckon the Triumph Rack will fit just fine.
Now all I have to do is actually get my hands on a set. Your contact didn't email me back, sadly. Will try again tonight. If you could call him to tell him to answer his email from some poor Aussie shmuck that wants to buy something from him, that would be great. :)
Gonzo
| --
Red XIII
Mods: locking gas cap; ISO-Wings for passenger; engine guards; dresser bars; Arlen Ness LED licence plate holder, rego tube and coloured number plate; long TORs; Pilot highway pegs w/ Magnum clamps; windshield; lower deflectors (customised); ISO grips; HD switch-block; Hardstreet Slimbags (colour matched); Corbin dual tour seat; Luggage rack & bag.
Todo: Various chroming of hand-made parts, Convex mirrors
Wishlist: Mini-ape handlebars, Hard clearcoat over tank
|
|
| | | Deeuu50 | | Set | |  | | Reg. Date | : | 09/03/2011 | | Posts | : | 24 | | Location | : | Essex, United Kingdom |
|
| | Posted : 11 Mar 2011 - 20:23 Post title : Re: Highway Hawk Sissy Rack info For Gonzo (Re: Gonzo) | | | Hi Haydn71, Being a fellow "Essex Bird" can i ask where you got the sissy bar, assuming its alot cheaper then the genuine part, I'm looking for a sissy bar for very occassional use, Is it quick release as well,hence not wanting to spend fortunes on the triumph part. thanks for any help given on this.
| 2013 Matt Graphite Storm, short tors, long haul seats, tear drop mirrors.satin black swing arm covers, satin black front caliper covers, satin black rack, Dart matrix screen.
2010 white-Blue-Red Bird, Chrome wheels, Twin T handlebars, Chrome Forks, Short Tors.
Summer Screen, Chrome rear pulley,Chrome Radcover.front dresser bars,chrome caliper covers,Alarm, Long Haul Seats.
|
|
| | | Gonzo | | Chaac | | | | Reg. Date | : | 01/05/2010 | | Posts | : | 643 | | Location | : | Sydney, NSW, Australia |
|
| | Posted : 20 Mar 2011 - 03:57 Post title : Re: Highway Hawk Sissy Rack info For Gonzo (Re: haydn71) | | | Hey Hayden,
Well with any luck I should have my side rails form your dealer this week. They got back to me and with little fuss had a PayPal invoice to me and shipped them off in a hurry.
Thanks for answering my questions and providing the details. :)
Cheers,
Gonzo
| --
Red XIII
Mods: locking gas cap; ISO-Wings for passenger; engine guards; dresser bars; Arlen Ness LED licence plate holder, rego tube and coloured number plate; long TORs; Pilot highway pegs w/ Magnum clamps; windshield; lower deflectors (customised); ISO grips; HD switch-block; Hardstreet Slimbags (colour matched); Corbin dual tour seat; Luggage rack & bag.
Todo: Various chroming of hand-made parts, Convex mirrors
Wishlist: Mini-ape handlebars, Hard clearcoat over tank
|
|
| | | haydn71 | | Set | | | | Reg. Date | : | 01/01/2011 | | Posts | : | 39 | | Location | : | Essex, United Kingdom |
|
| | Posted : 20 Mar 2011 - 07:52 Post title : Re: Highway Hawk Sissy Rack info For Gonzo (Re: Deeuu50) | | | Deeuu50 wrote:
Hi Haydn71, Being a fellow "Essex Bird" can i ask where you got the sissy bar, assuming its alot cheaper then the genuine part, I'm looking for a sissy bar for very occassional use, Is it quick release as well,hence not wanting to spend fortunes on the triumph part. thanks for any help given on this. |
|
Hi,
I bought the sissy bar from Julian Sopers in Leigh on Sea, it cost £130.00.
Link
To put it on and take it off you need to remove the front and rear bolts of the fender.
Hope this helps!
| Live and Let Ride!!!
